Production Capabilities

• • • • Single End
      • Multi-Wire
      • Stranded Wire
      • Bobbin Wounded
      • Braided Products
      • Extra Flexible Copper Cables

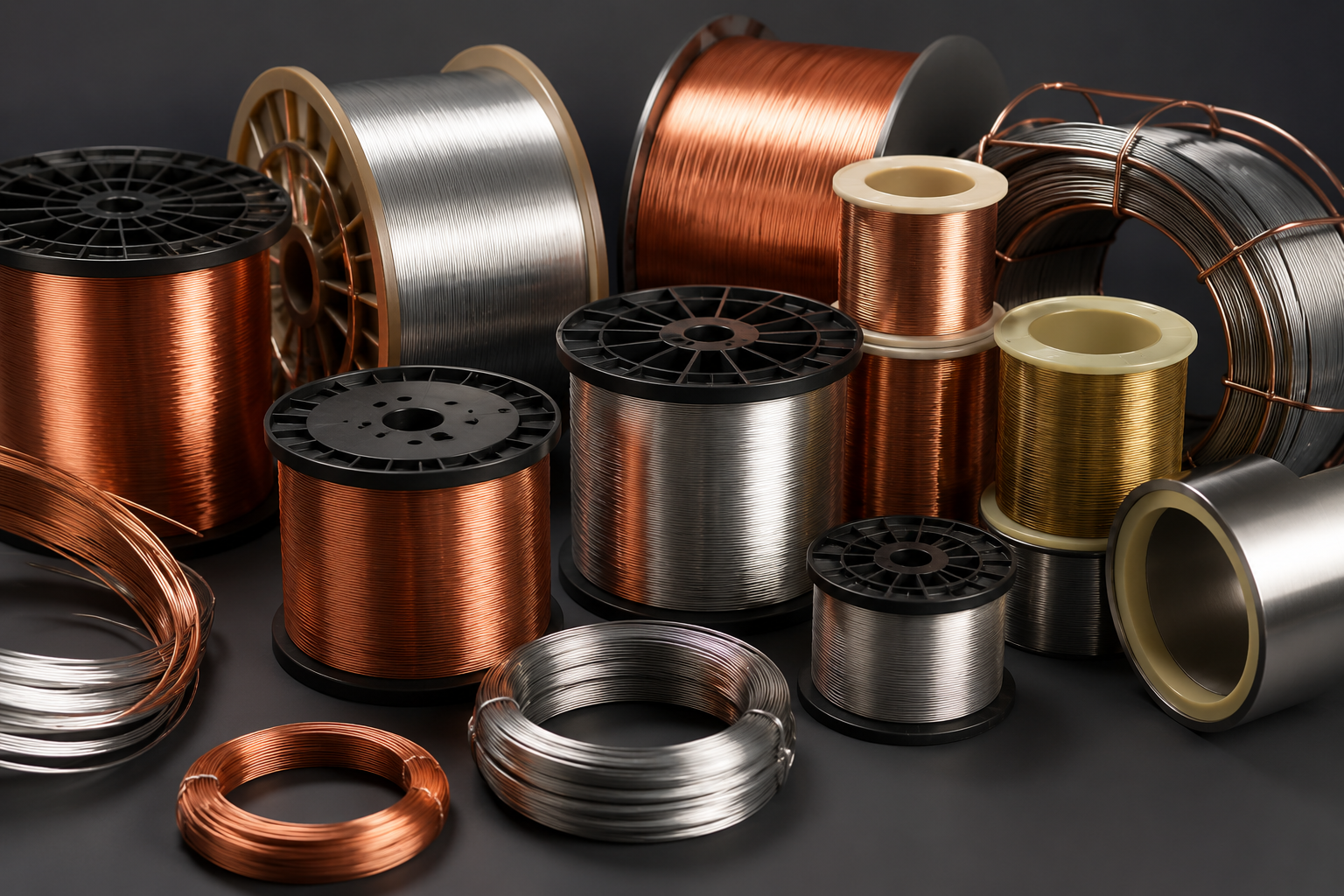

SINGLE END

• AWG 14 (1.628 mm) to AWG 52 (0.0198mm)

• Most AWG sizes are available in stock in our warehouses.

• Odd and half AWG sizes are available on special order.

Available in:

• Copper and copper alloy wire
• Bare copper wire – ETP or OFHC
• Tinned plated copper wire regular tinned top coat & tinned overcoat
• Silver plated copper wire
• Nickel plated copper wire
• Stainless steel wire
• Copper clad steel
• Aluminum wire (copper clad aluminum)
• Special alloys

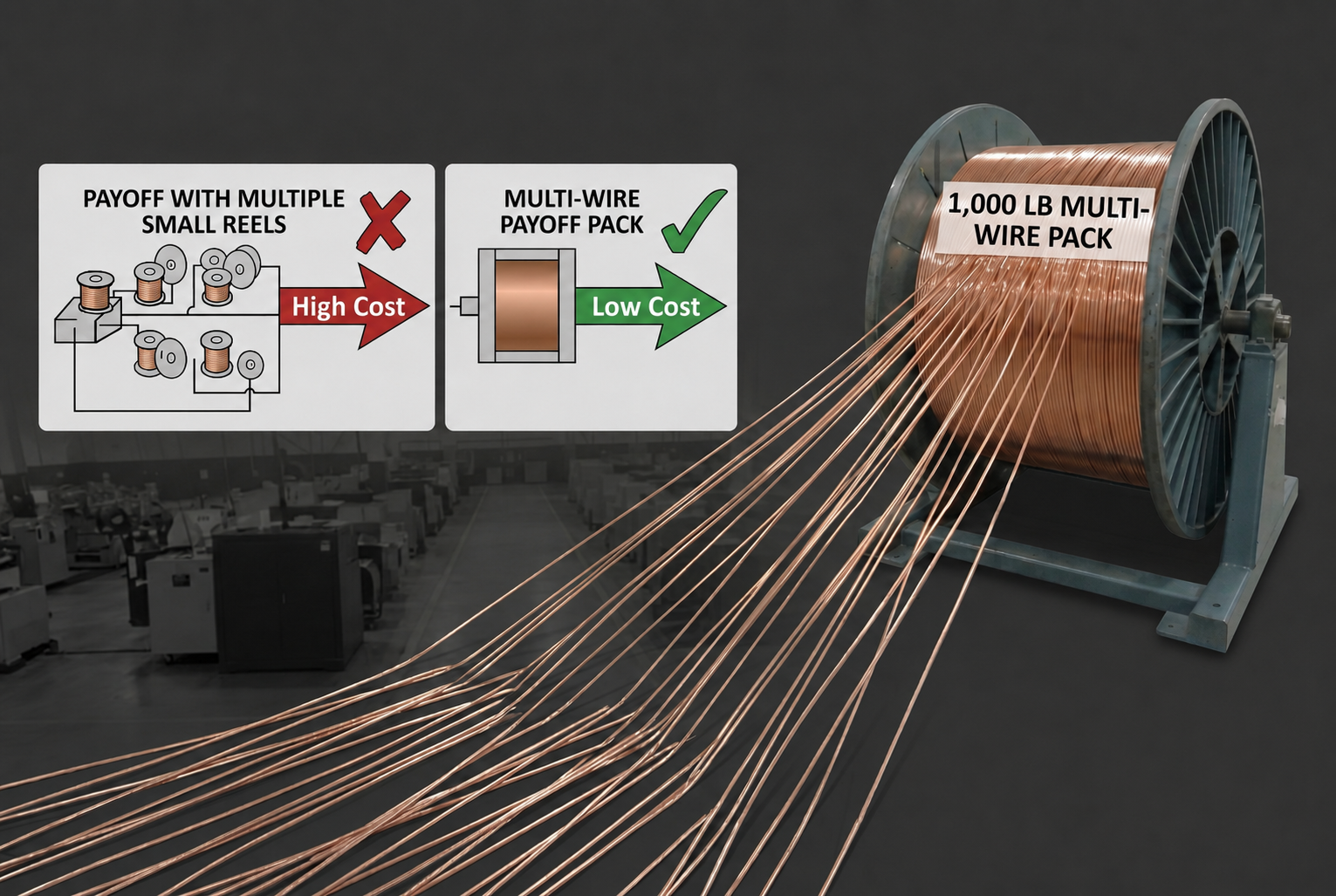

MULTI – WIRE

• Multi-Wire reduces overhead and handling costs because you do not have to frequently change the small packages of single end using many payoffs. With Multi-Wire you can use 500 to 1,000lb packages with many multiple ends without changing reels.

• Production runs many hours with continuous tension control for a much better production with less soldered joints.

• Bare & tinned plated available in AWG 22 (0.6438mm) to AWG 50 (0.025mm)
• Silver & nickel plated available in AWG 22 (0.6438mm) to AWG 48 (0.03mm)

Provided a cost effective alternative source of

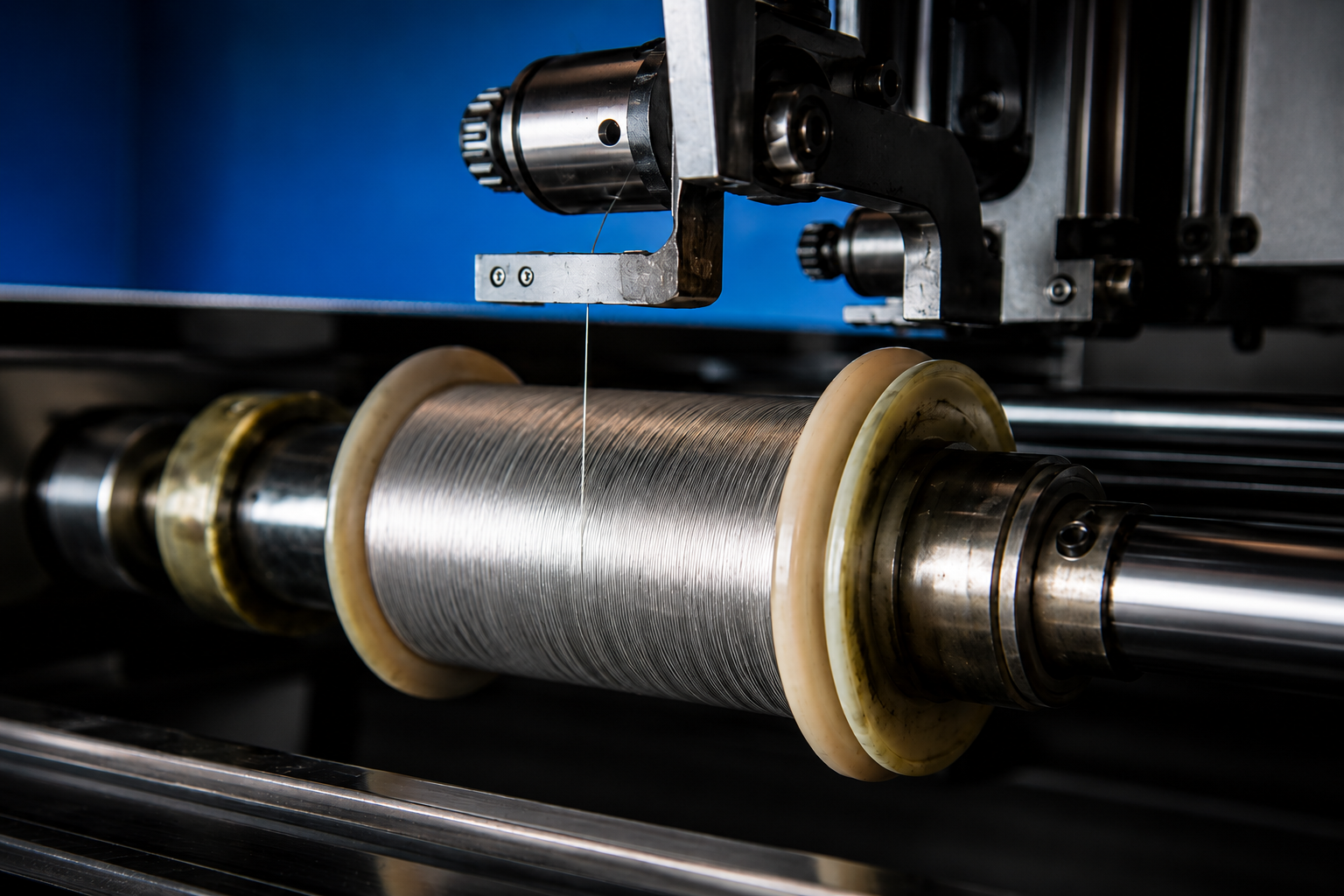

BOBBIN WOUND
wire to the
Wire & Cable Industry.

BOBBIN PRODUCTS

Our factory, AEB International-MFG, located in Duncan SC, has extensive BOBBIN WINDING CAPACITY for wardwell, hacoba and customized type bobbin put ups e.g. steeger, dratex, 16-C, 24-C or New England butt braider bobbins.

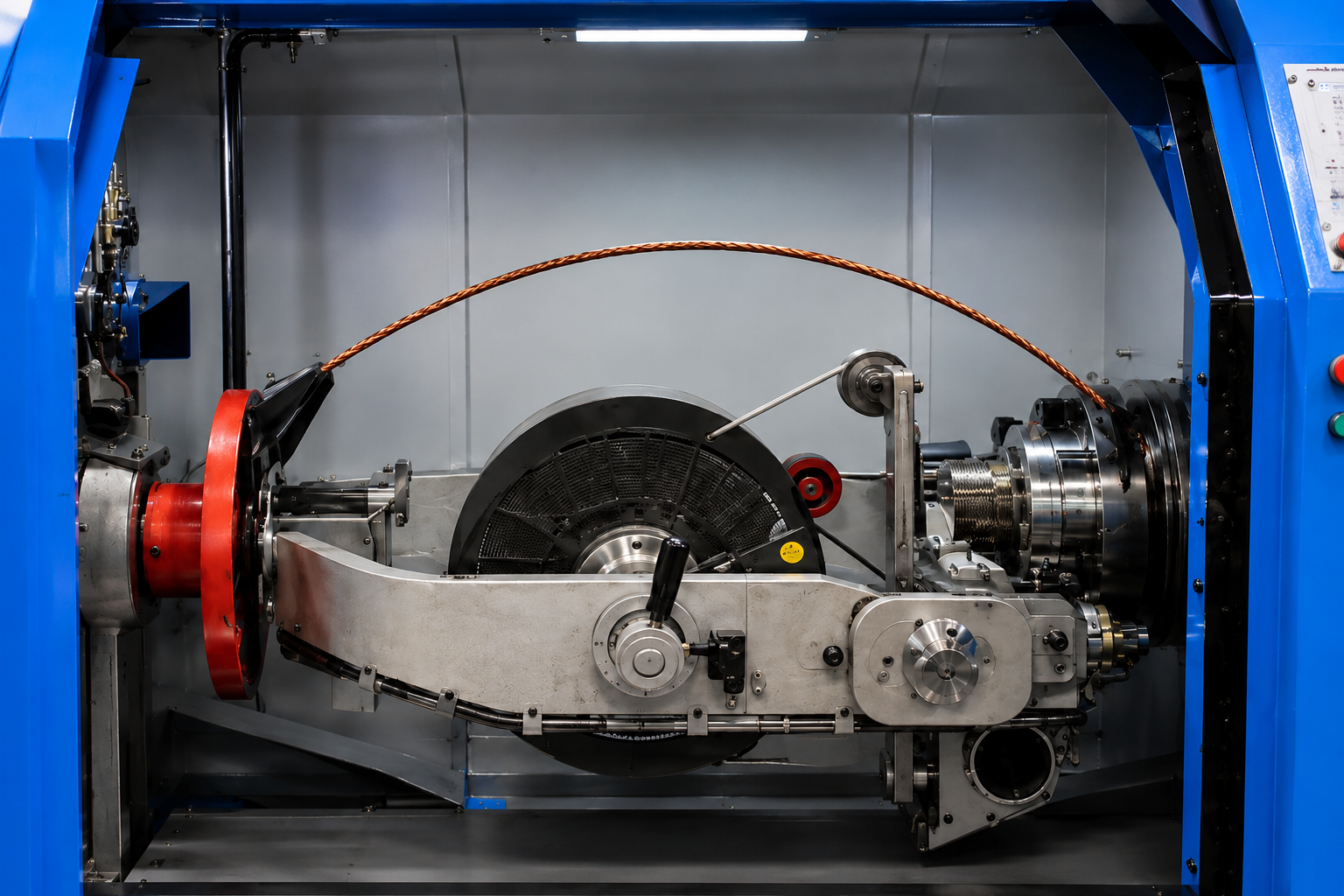

EXTRA FLEXIBLE CABLE

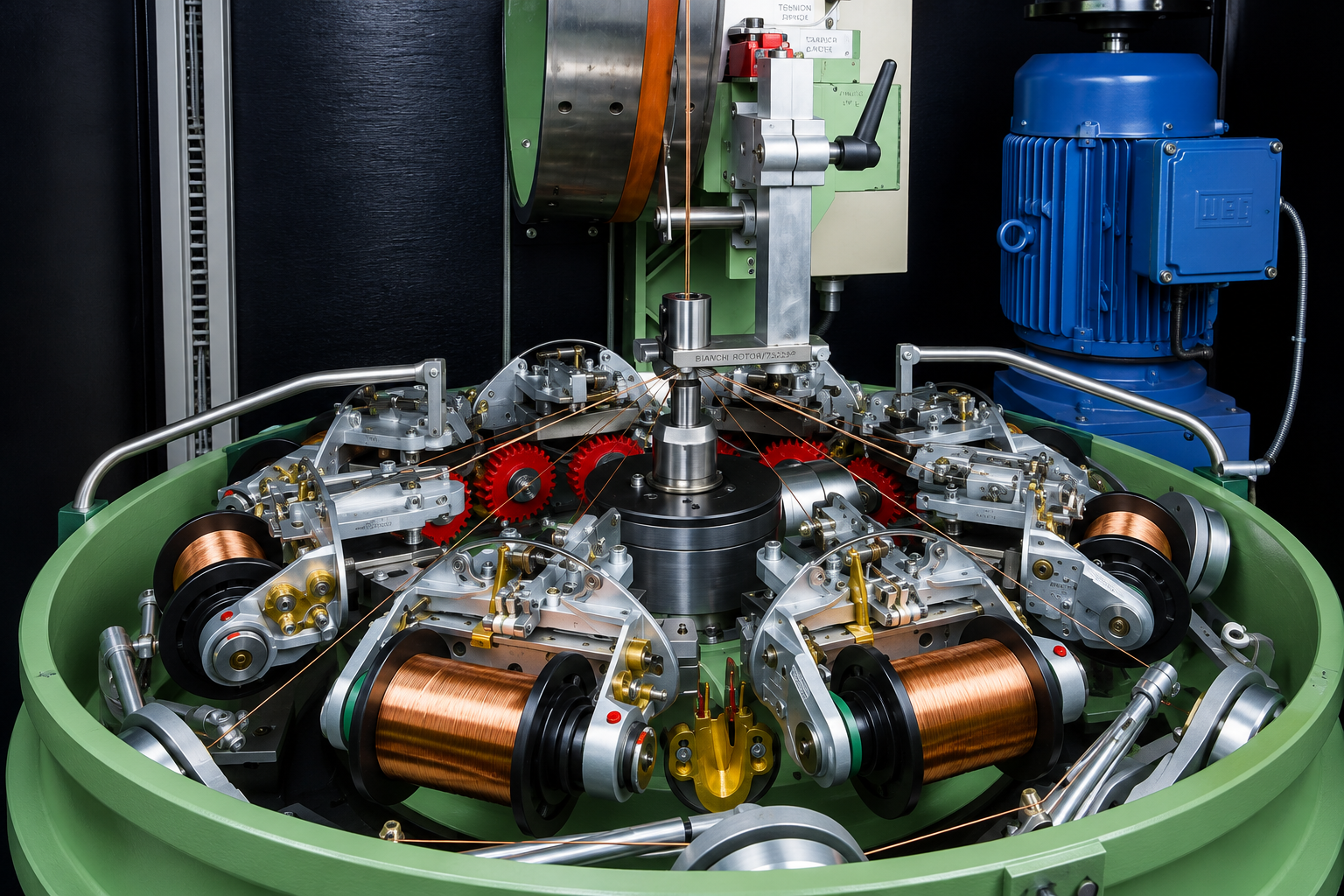

• Bunched, Stranded, Ropelay & Braided
• Miniature Cables For Maximum Flexibility
• Non-standard Ropelay In Stranded & Braided Copper Cables
• For Carbon Brush Connections

AVAILABLE IN:

• Bare & Tinned
• Silver & Nickel Plated
• Cadmium Copper Wire (Alloy 162)
• Stainless Steel Wire

SPECIAL PRODUCTION & PACKAGING AVAILABLE UPON REQUEST
